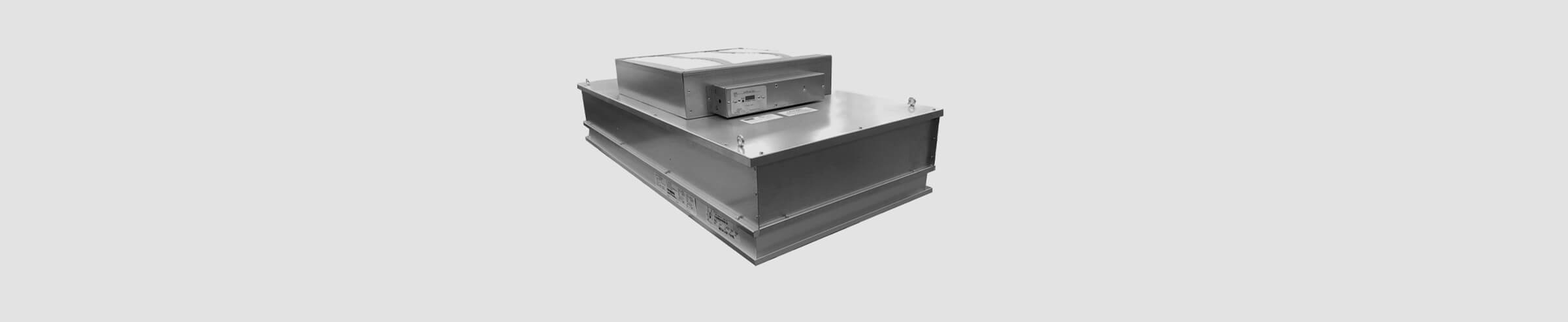

The ECM PHANTOM by Gordon is your best choice for an energy efficient FFU. The ECM PHANTOM utilizes an Electronically Commutated Motor (ECM) that converts any AC input power to DC voltage, delivering high torque values with minimal energy consumption. The significantly lower operating cost of this leading-edge motor technology pays for its cost premium in less than 2 years.

So in addition to having the lowest operating cost, the ECM PHANTOM is the quietest operating FFU on the market, with unsurpassed performance and reliability offering the highest value for your fan-powered filter unit (FFU) investment.

The ECM PHANTOM is equipped with all the features you need for most FFU applications.

ECM PHANTOM

FOR TECHNOLOGY + LIFE SCIENCES CLEANROOM APPLICATIONS

LOW OPERATING COST

The highly efficient ECM technology delivers high performance along with extremely low energy consumption.



INPUT POWER ADAPTABILITY AND SPEED CONTROL

The ECM motor controller operates on any single-phase input line voltage, 120V to 240V, converting to DC power for motor speed control ranging from 1% to 100%.



RESERVE CAPACITY

Factory speed program settings leave over 40% reserve capacity on the fan curve, more than sufficient to compensate for typical external static loading.



CONTROL AND MONITORING OPTIONS

ECM PHANTOM ffu can be furnished with Visual Control Unit (VCU) for manual speed adjustment with digital display, or Modbus RTU interface to communicate with remote Building Management System (BMS) of Industrial Automation System (IAS) software architecture.



LOW NOISE

Single units operate at an exceptionally quiet NC-40 noise rating, on high speed setting. No FFU operates at a quieter or more comfortable noise level than the PHANTOM.



SAFETY

The ECM PHANTOM is U.L. and C.U.L. listed and approved as an appliance, guaranteeing high quality and dependability.



RELIABILITY

Motors are rated at 100,000 hours, averaging a life expectancy of over 11 years.



REPLACEABLE PREFILTERS

MERV 4 prefilters protect and extend the life of the HEPA final filters.



PERFORATED AIR DIFFUSER FACE SCREEN

Perforated aluminum face screens perform the dual functions of diffusing the air stream to help gain unidirectional airflow, while protecting the HEPA filter media from damage.



OPTIONS

  • ULPA final filters: 99.9995% efficiency @ .12 microns
  • PTFE final filters: to 99.99999% efficiency
  • Knife edge final filters for use in gel-seal ceilings
  • 12-foot Power cord (ships separately for field attachment)
  • A/C duct collar for direct connection to HVAC ductwork

PRODUCT DETAILS

SPECIFICATIONS

PRODUCT DETAILS

ECM-PHANTOM-2X2
ECM-PHANTOM-2X3
ECM-PHANTOM-2X4
R2F-ECM-PHANTOM-2X2
R2F-ECM-PHANTOM-2X4

SPECIFICATIONS

ECM Phantom

R2F ECM Phantom
